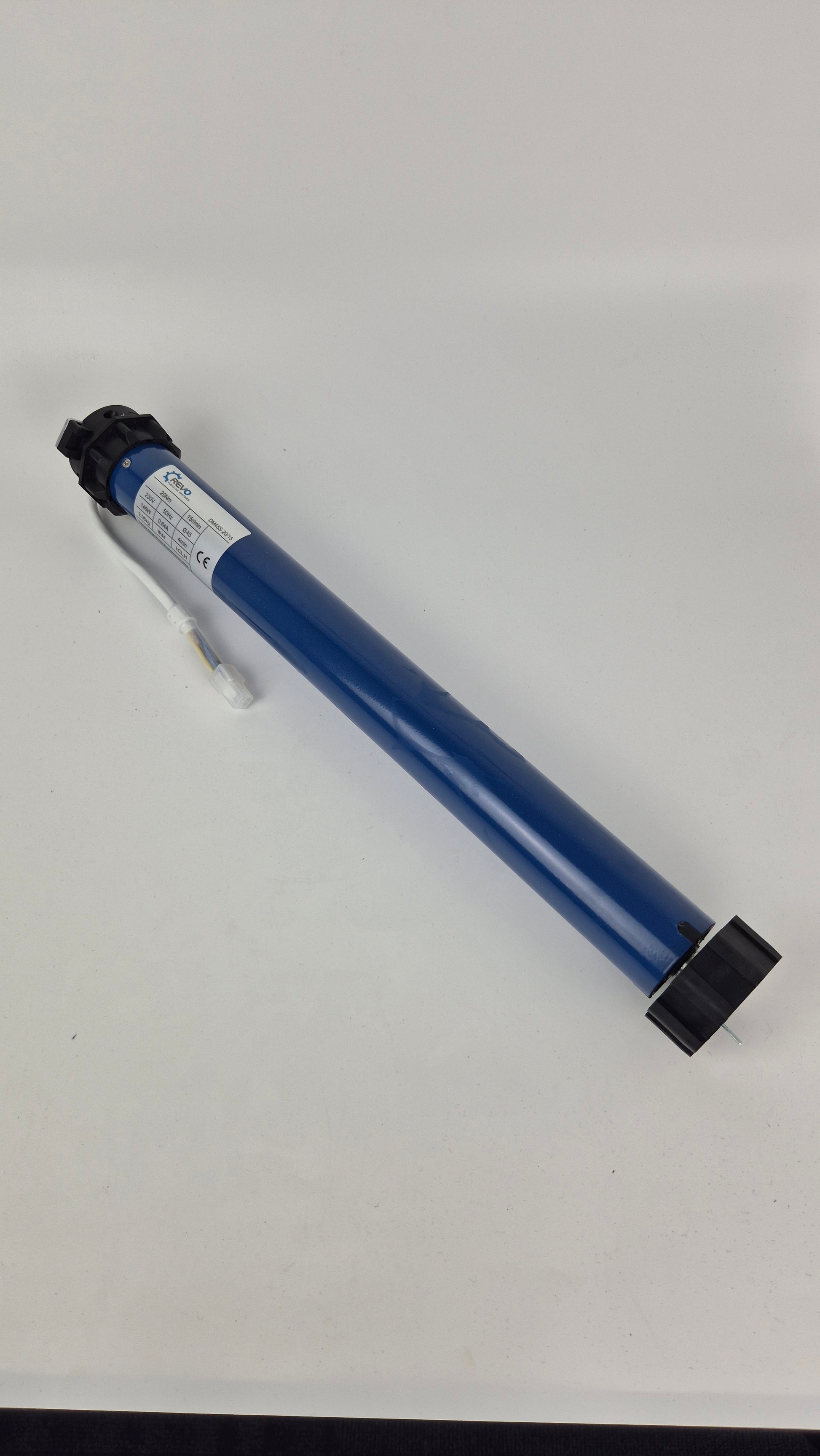

Revo 20NM Roller Shutter Motor

$220.00 inc. GST

Sale Sold out

Taxes included. Shipping calculated at checkout.

The Mechanical motors are the most basic motors within our range. They offer control of the motor via a hard-wired wall switch. These are commonly used in new homes where it is possible to run wires from the motor down to where the switch is to be located.

It is possible to connect a mechanical motor to a home automation system.

Up/Down Limit Setting

The Up/Down limit setting is manually done with 2 recessed progressive limits yellow/white on the motor head. The instructions for limit setting come with the motor.

Features

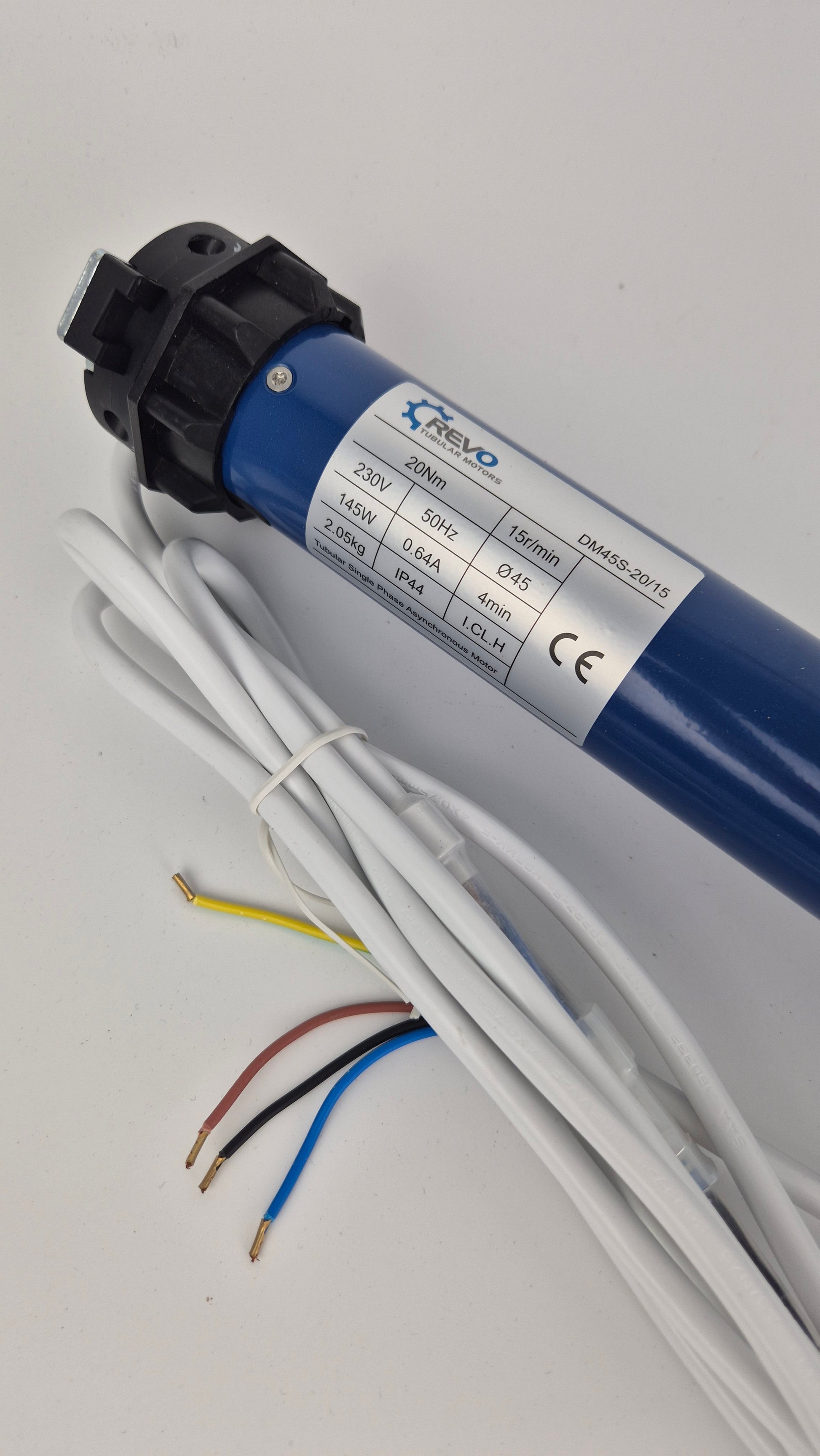

Supply Voltage – 230V 50Hz motor
Torque – 20NM
Speed – 15 rpm
Operating the tubular motor with a switch
Adjustment by turntables

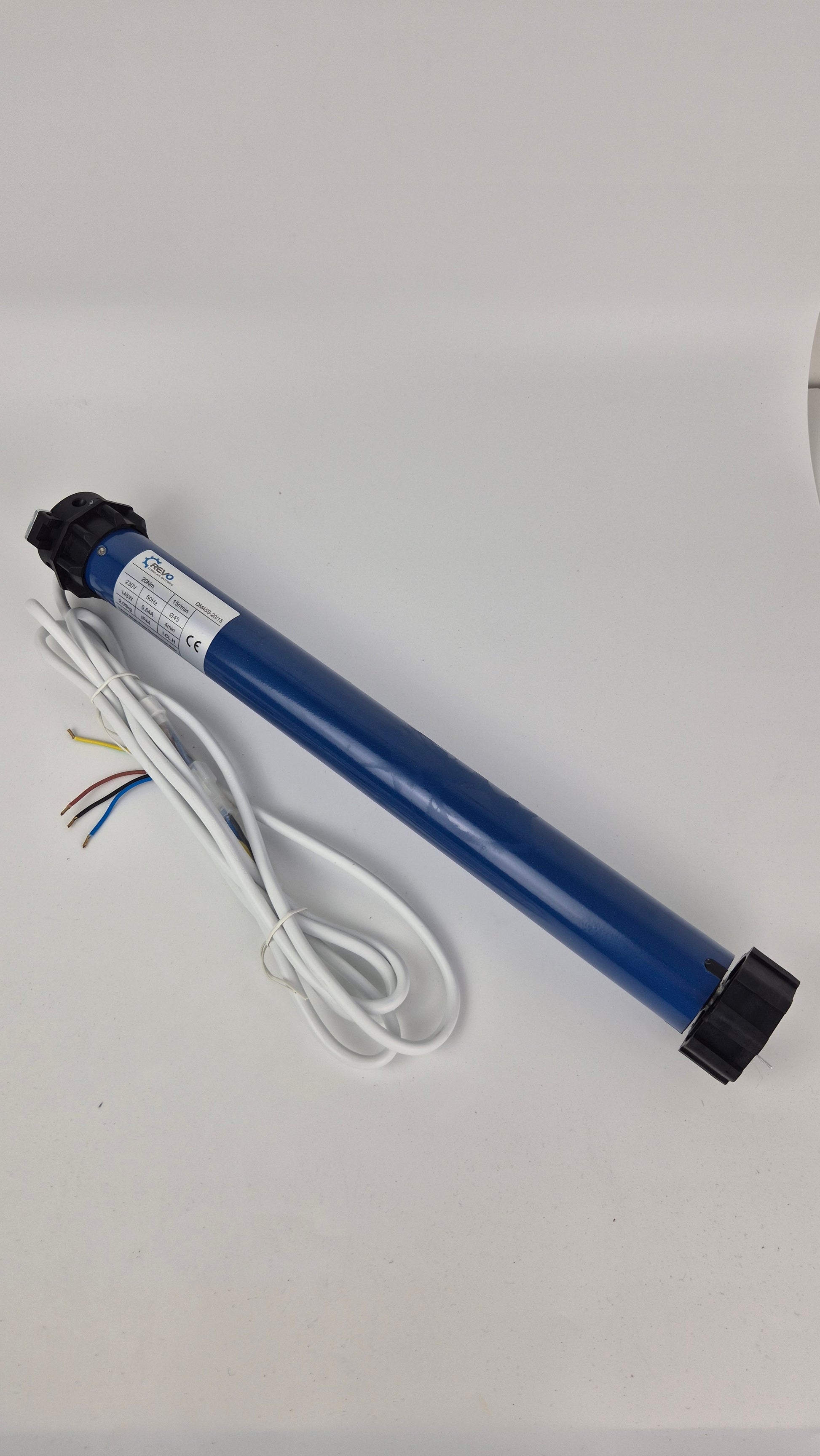

With 1.5 meters of wire.
Lifting Capacity – 40Kg
Protection Level – IP44
Current Consumption – 0.75A

Highlights

Suitable for left and right-hand installation – No extra storage space is required due to the different types of drives
Overheat protection for the motor – In the event of overheating, the temperature sensor will automatically switch off the motor to prevent damage
Flexible limit adjustment tool included – Precise limit adjustment even in hard-to-reach areas
Easy setting of final positions – Can be done without any specialist tools
The shutter can be wound up around the motor head – Suitable for applications with limited space

ATTENTION

Revo motors are not toys. Do not allow children to play with the control device(s).
Revo Motors is not waterproof. Electricity and water do not mix.
All motors mounted externally require covering.
All motors must be mounted horizontally.
Revo motors are designed for intermittent use only. A thermal overload switch protects the motor from damage caused by overheating.
Revo motors are sensitive to impacts. Shocks will damage sensitive parts.
Parallel wiring and dual switching of the standard switch-controlled Revo motors are strictly forbidden.
Drilling into the Revo motor may cause irreparable damage
Failure to observe the above will void the warranty of the motor and may pose a significant electrical and/ or mechanical hazard.
When ordering, specify the Drive Wheel required (Round or Octagonal).
NOTE: This price is for the motor only. The switch is sold separately.
Installation and wiring must be done by a qualified professional.

What's Included

Qty 1 : Revo 20NM Roller Shutter Motor with cable
Qty 1 : Limit setting stick
Qty 1 : Side frame motor bracket

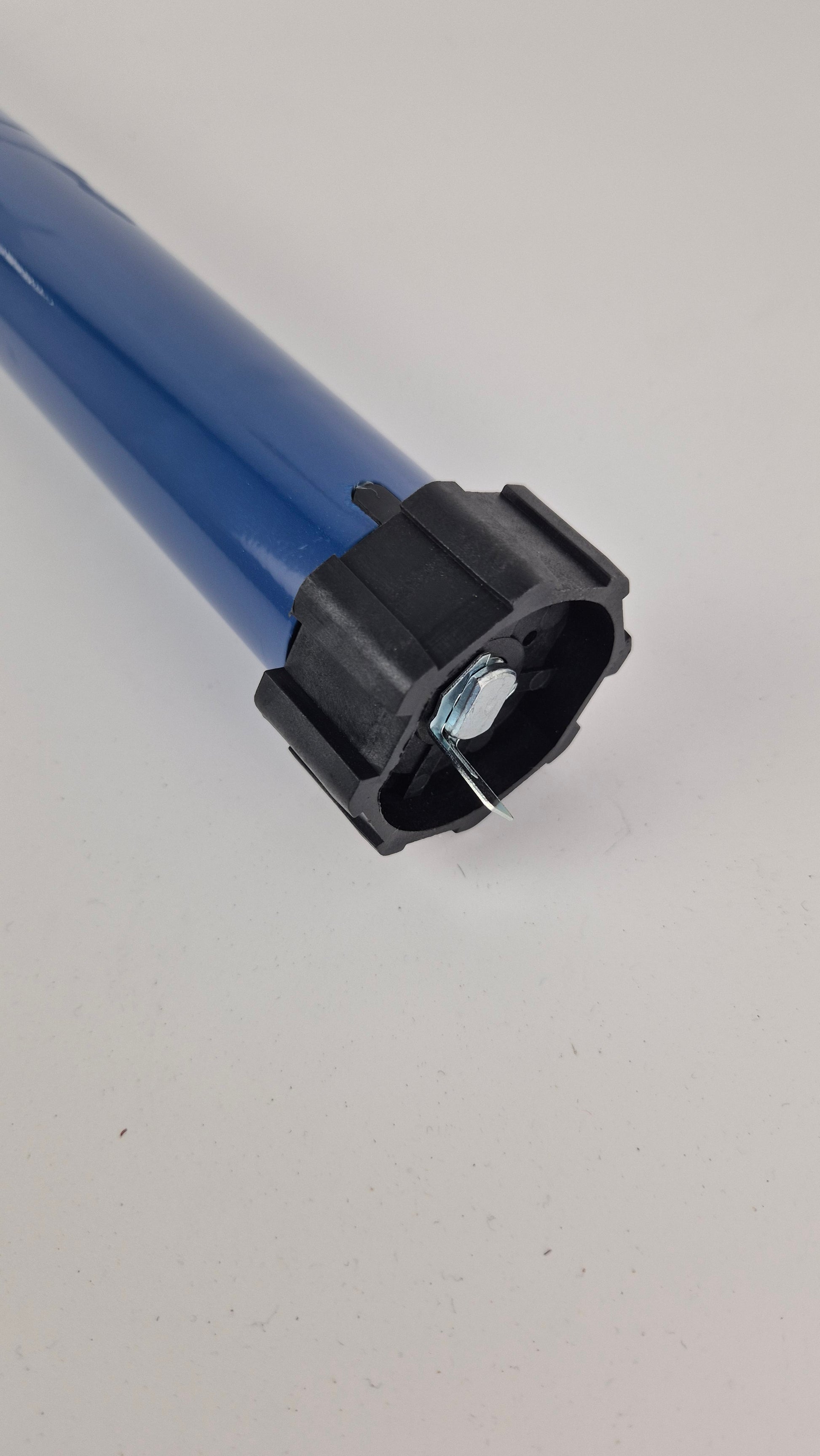

Qty 1 : 60mm Octagonal Drive wheel and Crown
Qty 1 : Instruction Manual
